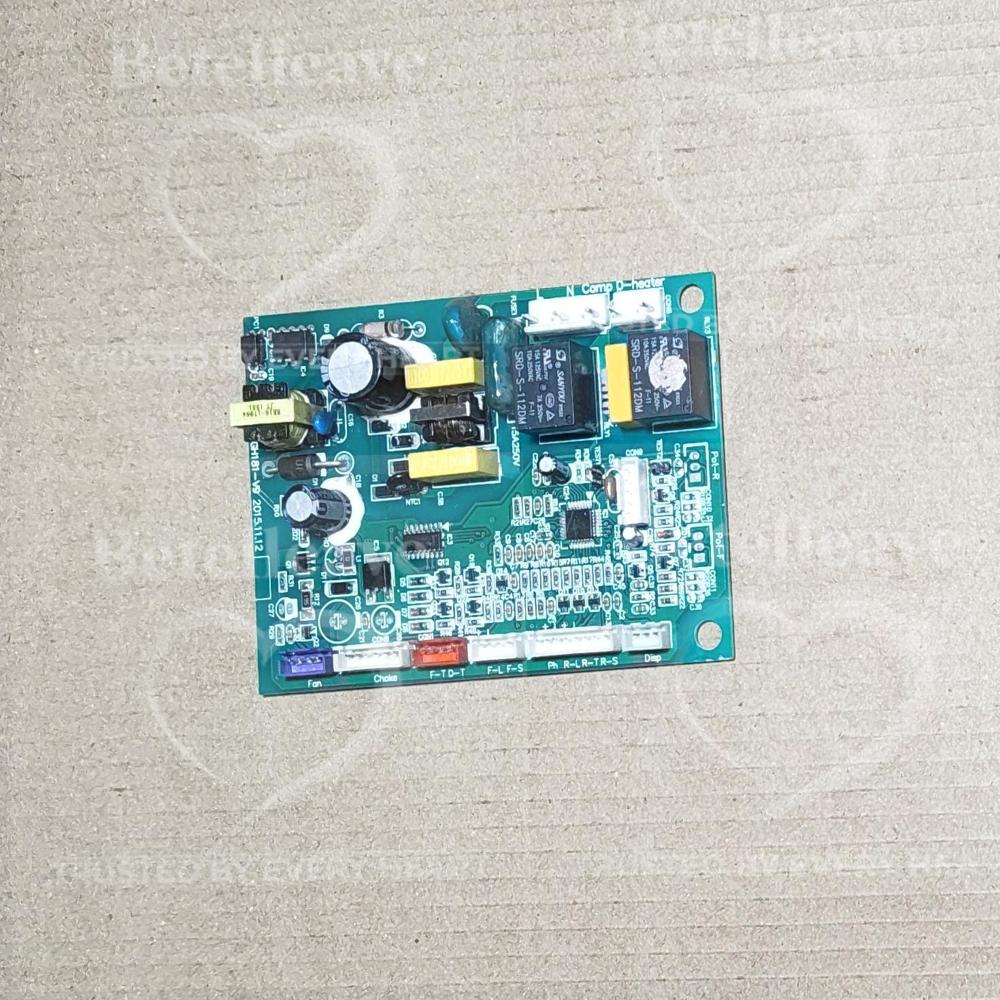

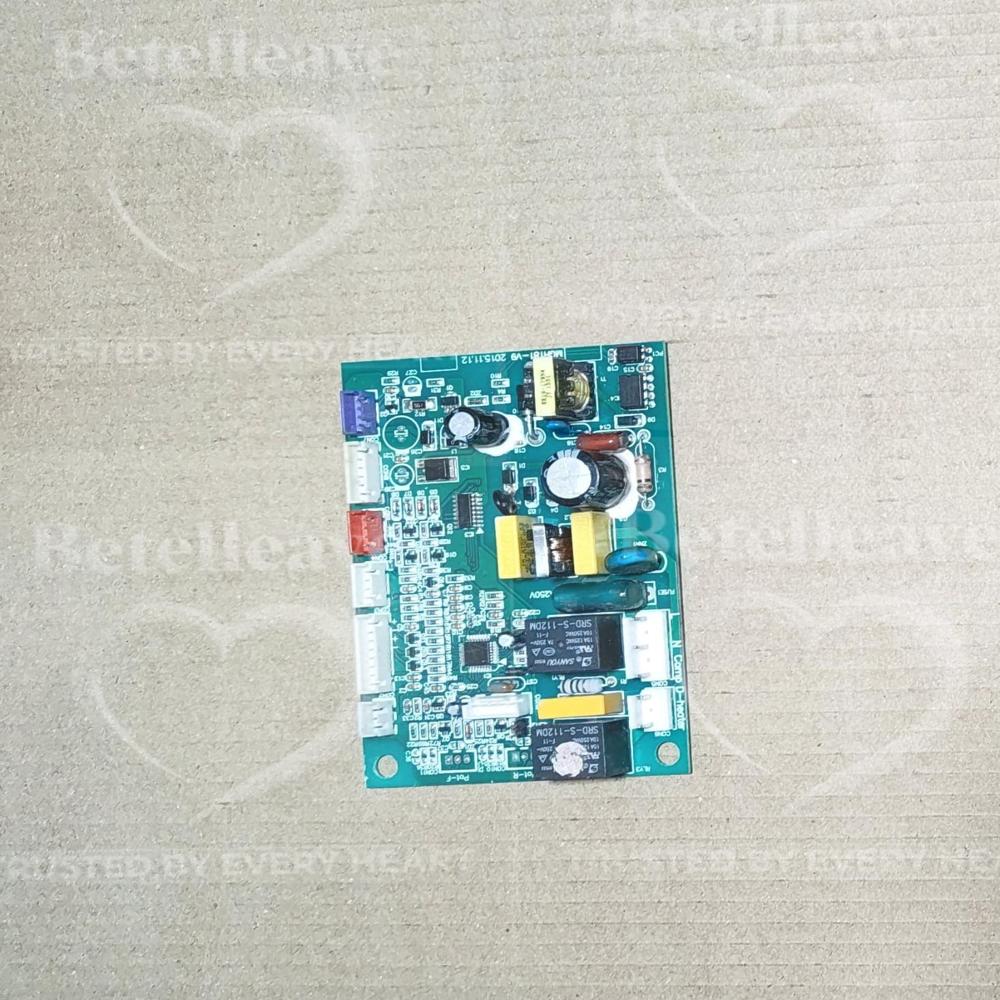

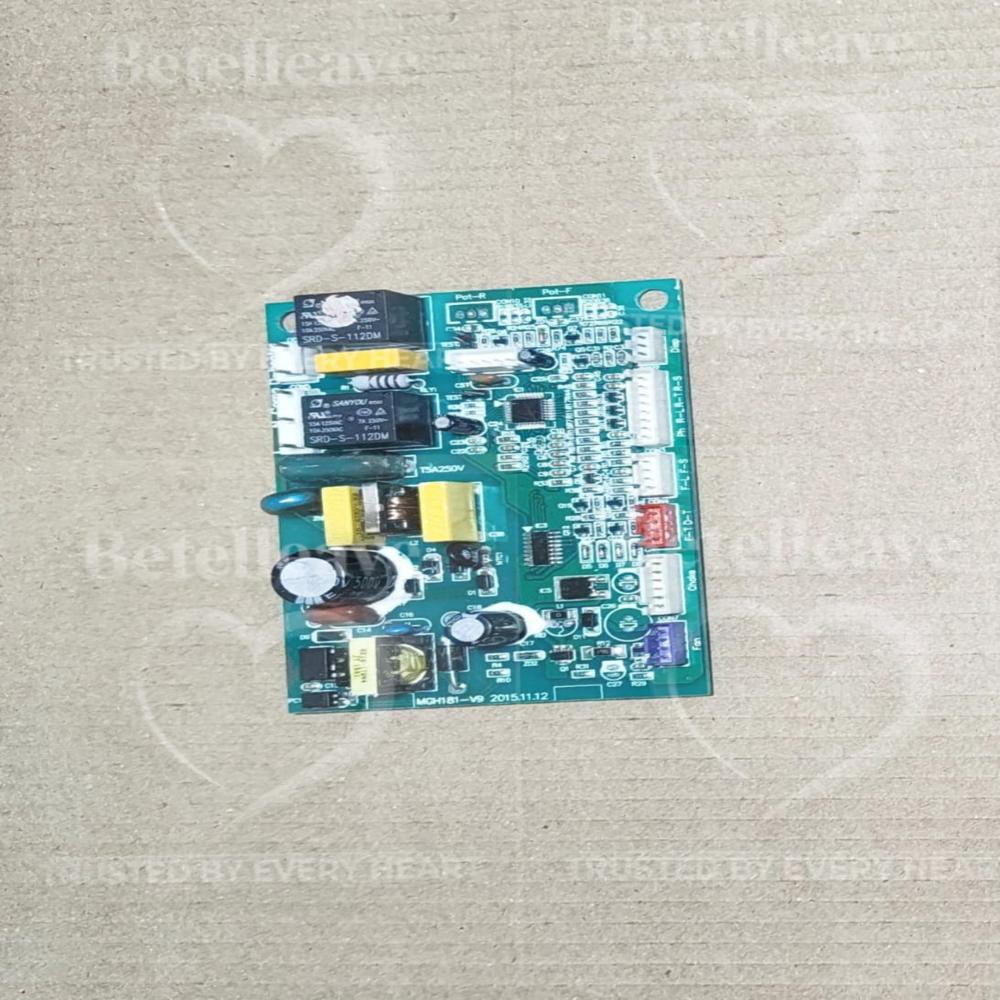

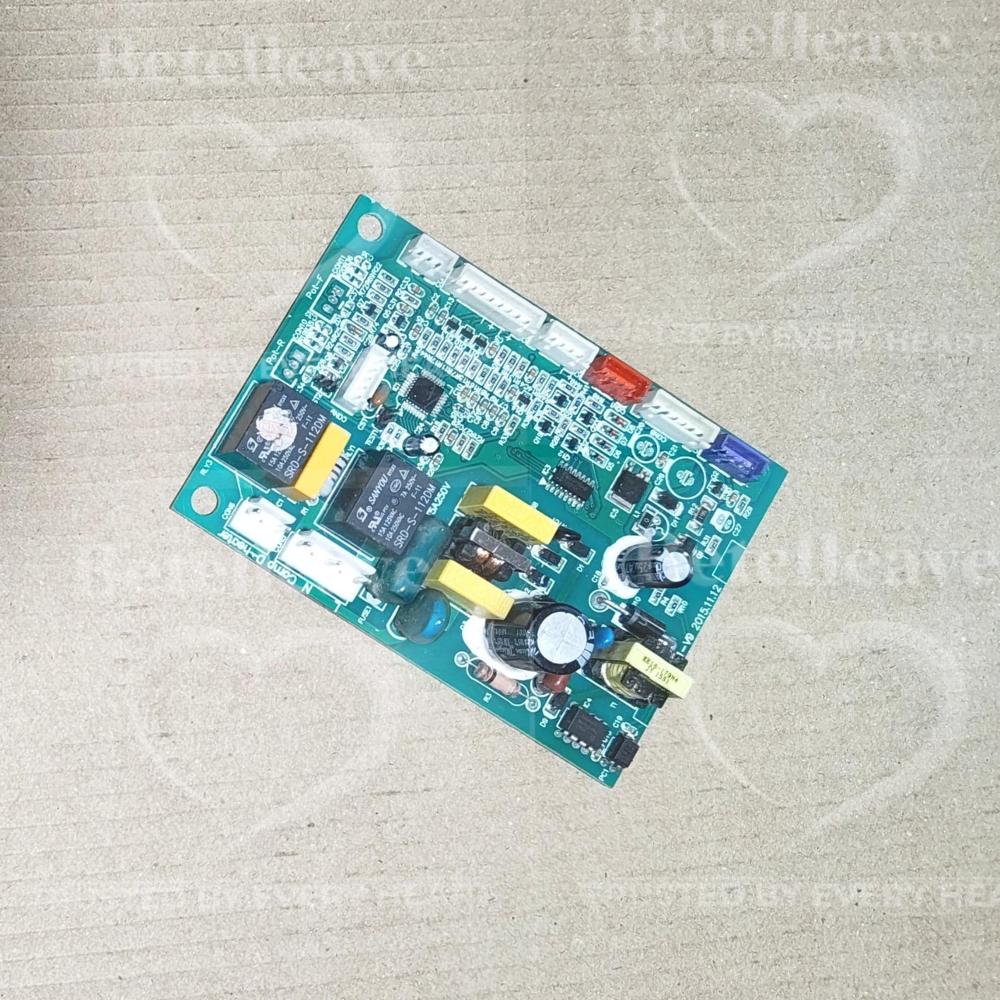

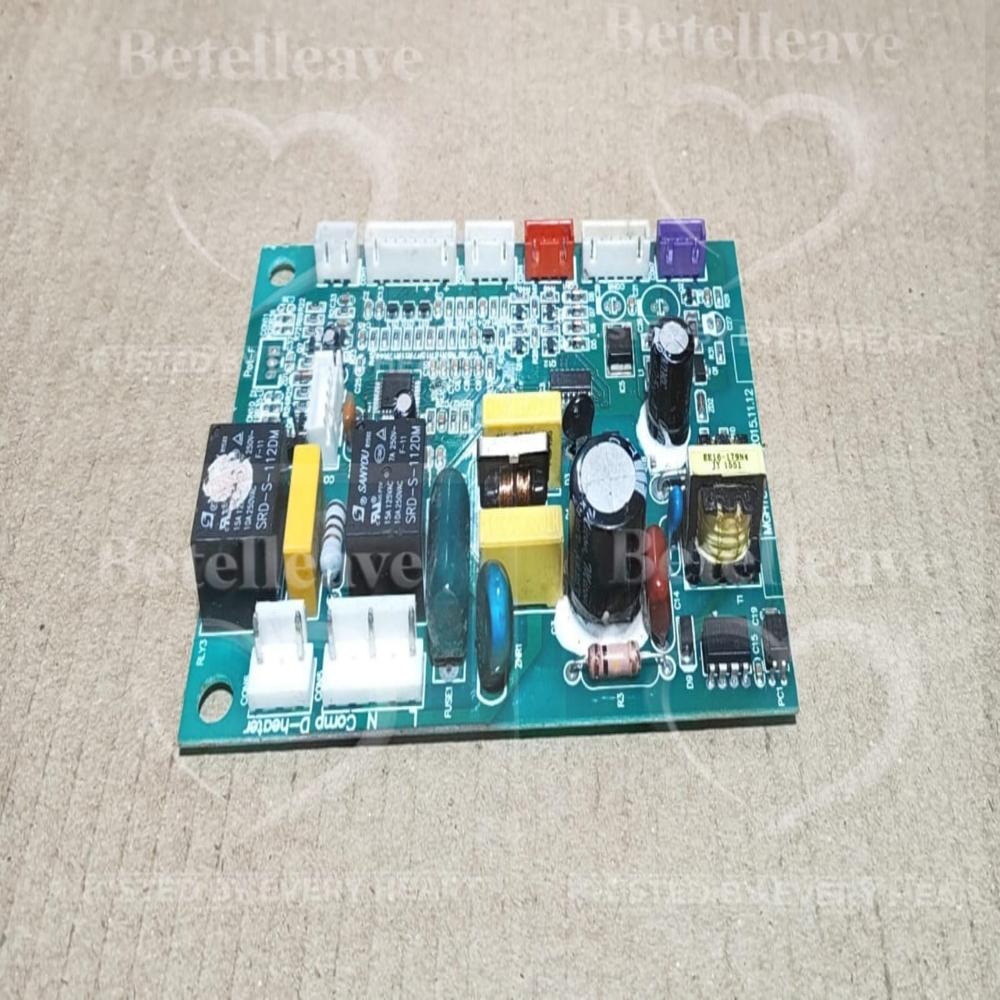

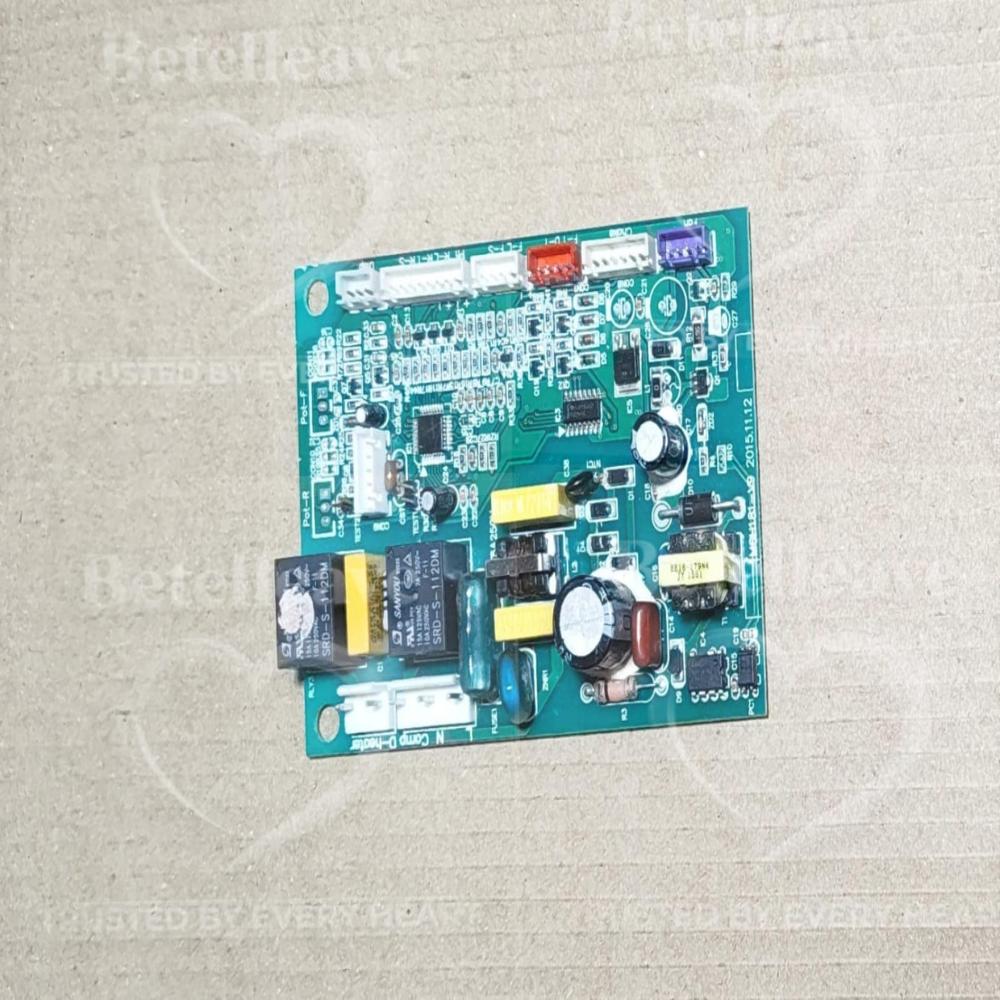

VIDEOCON refrigerator PCB BOARD

Name: VIDEOCON refrigerator PCB BOARD
Brand: Betelleave
Price: 3555.0 INR
Availability: InStock

Price 3555.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

VIDEOCON refrigerator PCB BOARD Specification

Product Type
Refrigerator PCB Board

Board Material
FR4 (Flame Retardant Epoxy Laminate)

Weight
Approximately 150g

Function
Controls Cooling System, Compressor, and Sensors

Application
Refrigerator Electronic Control

Size
Standard OEM Dimensions

Installation
Professional Installation Recommended

Color
Green

Compatibility
VIDEOCON Single and Double Door Models

Rated Voltage
220-240V AC

Feature
Precision SMD Components, Multi-layer Circuit Design

Condition
New and Original

Operating Temperature
-20C to +70C

Quality Approval
100% Tested Before Shipping

Frequency
50/60 Hz

Mount Type
Screw Mount

VIDEOCON refrigerator PCB BOARD Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Pieces Per Week

Delivery Time
1 Week

Packaging Details
CUSTOM PACKAGING

Main Export Market(s)
Asia

Main Domestic Market
All India

Certifications
ISO CERTIFICATIONS

About VIDEOCON refrigerator PCB BOARD

The PCB (Printed Circuit Board) in a Videocon refrigerator is the main electronic control unit that manages cooling, defrosting, and overall operation of the appliance.

Key Functions & Description:

Main Control Unit (Brain):
Controls compressor operation, cooling cycles, and overall system performance.
Temperature Control System:
Uses thermostat or sensors to maintain the desired temperature inside the fridge and freezer.
Power Supply Section:
Converts incoming AC (220240V) into regulated DC voltage for electronic components.
Compressor Control:
Switches compressor ON/OFF based on cooling requirement to maintain efficiency.
Defrost Control (in frost-free models):
Automatically activates defrost heater to prevent ice buildup on evaporator coils.
Sensor & Input Interface:
Receives signals from:
- Temperature sensor
- Defrost sensor
- Door switch
Fan & Airflow Control (if applicable):
Controls evaporator fan for proper cooling distribution.

Advanced Multi-layer Circuit Design

Equipped with state-of-the-art multi-layer circuit technology and precision SMD components, this PCB board delivers superior efficiency and durability. Its advanced electronic control manages complex refrigerator functions while ensuring long-term stability.

Reliable and Safe Performance

Manufactured from FR4 flame retardant epoxy laminate, the board assures safety, resilience, and consistent operation. Capable of withstanding temperatures from -20C to +70C, it's suitable for varied climates and refrigerator environments.

Seamless Compatibility and Installation

Designed as a standard OEM component, this PCB board fits all VIDEOCON single and double door models. The screw mount allows for straightforward, secure integration-however, professional installation is recommended for ideal performance.

FAQ's of VIDEOCON refrigerator PCB BOARD:

Q: How does the VIDEOCON refrigerator PCB board improve refrigerator operation?

A: This PCB board acts as the central electronic controller, managing the cooling system, compressor, and sensors. With its precise circuitry and multi-layer design, it ensures efficient operation, optimal cooling, and energy savings.

Q: What is the recommended process for installing the PCB board?

A: For best results, installation should be performed by a qualified technician. Professional installation ensures correct integration with the refrigerator's electronic system and upholds warranty and safety standards.

Q: When should the VIDEOCON refrigerator PCB board be replaced?

A: Replace the PCB board when your refrigerator exhibits erratic cooling, sensor failures, or electronic control issues that persist despite troubleshooting other components.

Q: Where can this PCB board be used?

A: This PCB board is compatible with all VIDEOCON single and double door refrigerator models that require standard OEM electronic control boards.

Q: What benefits does the FR4 material offer?

A: FR4 flame retardant epoxy laminate provides excellent insulation, thermal stability, and fire resistance, ensuring the board's longevity and reliability under diverse operating conditions.
