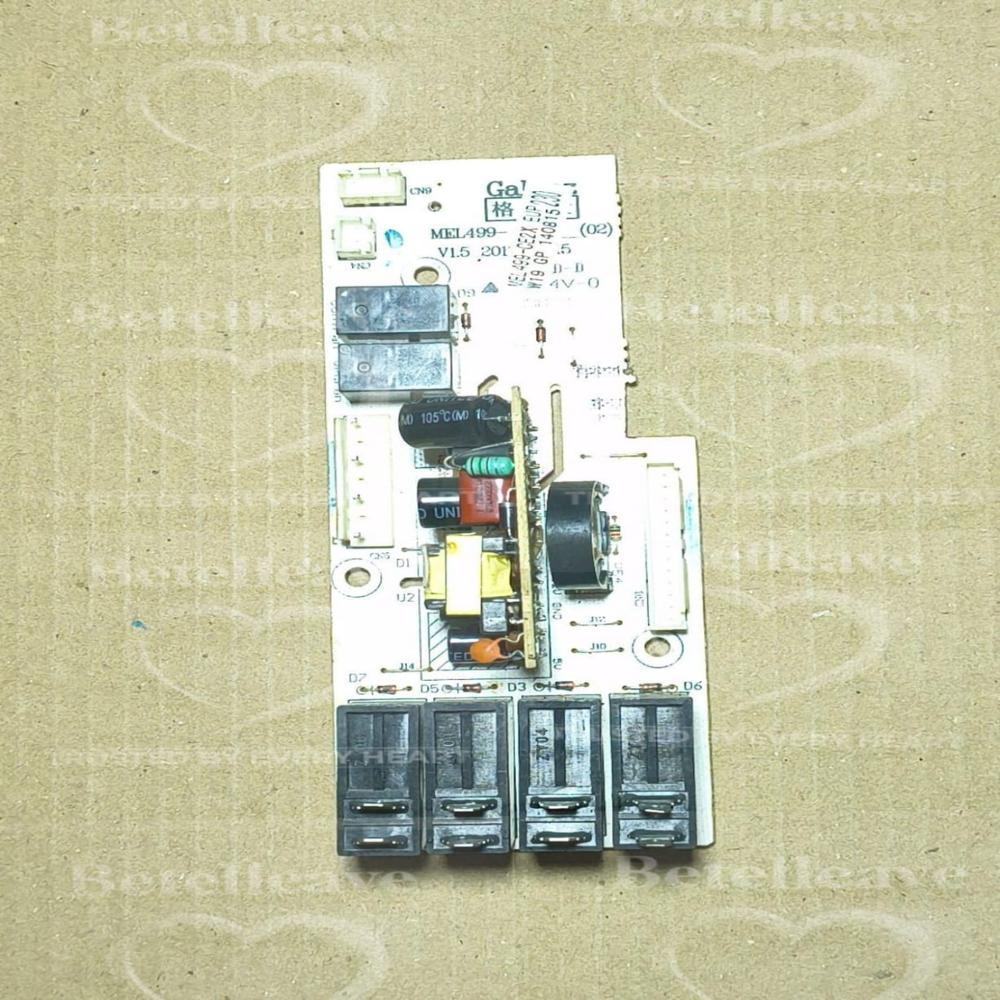

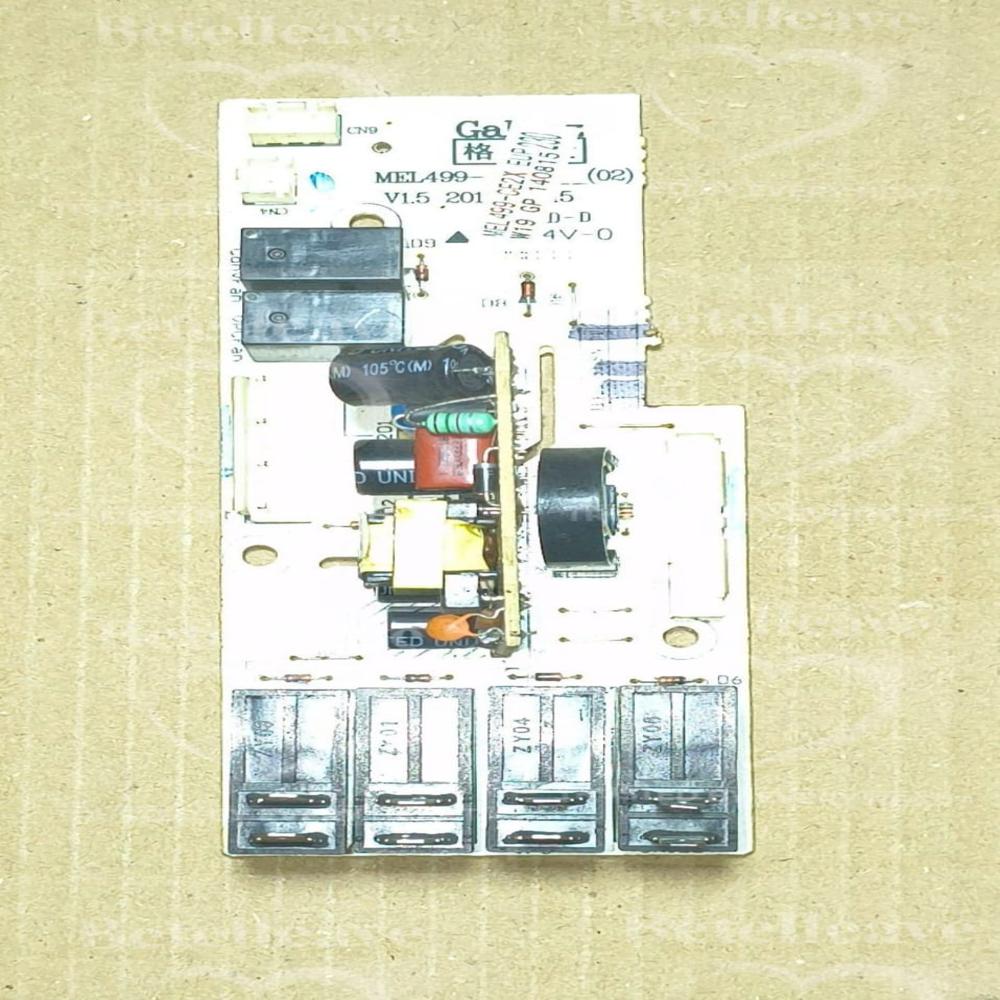

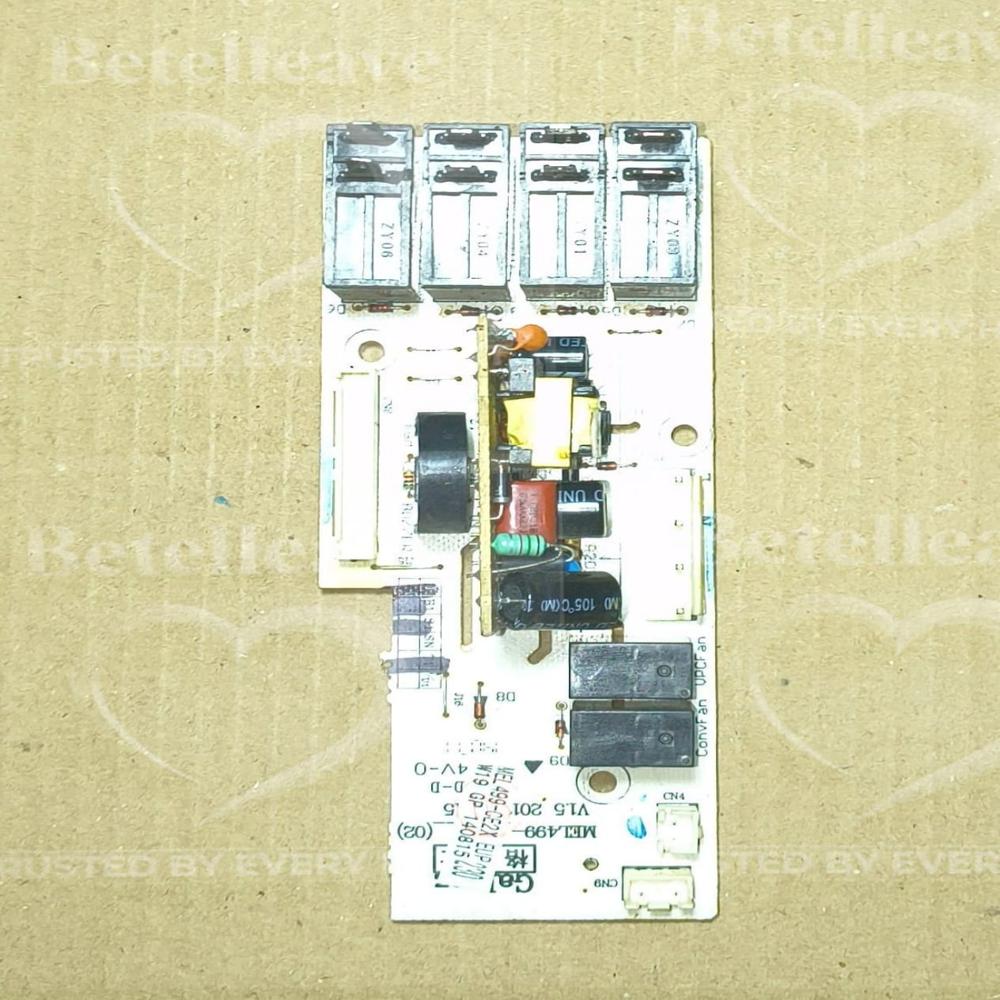

MICROWAVE OVEN PCB BOARD

Name: MICROWAVE OVEN PCB BOARD
Brand: Betelleave
Price: 2555.0 INR
Availability: InStock

Price 2555.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

MICROWAVE OVEN PCB BOARD Specification

Life Span
>10,000 Cycle Operations

Compatibility
Universal for most microwave ovens

PCB Substrate
FR4 Epoxy Glass

Component Placement
Mixed (Through-Hole and SMD Mounted)

Operating Temperature
-20C to 80C

Weight
Approx. 120 grams

Mounting Type
Panel Mount

Board Type
Single Layer PCB

Power Supply
110V/220V AC

PCB Dimensions
Approx. 12 cm x 8 cm

Control Functions
Timer, Power Level Adjust, Start/Stop Operations

Input Frequency
50/60 Hz

MICROWAVE OVEN PCB BOARD Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
1 Piece Per Week

Delivery Time
1 Week

Sample Available
No

Packaging Details
CUSTOM PACKAGING

Main Export Market(s)
Asia

Main Domestic Market
All India

Certifications
ISO CERTIFICATIONS

About MICROWAVE OVEN PCB BOARD

microwave oven PCB (Printed Circuit Board) is the main electronic control unit that manages and automates all functions of the microwave oven.

Key Points:

Acts as the brain of the microwave
Controls heating time, power levels, and cooking modes
Manages components like the magnetron, turntable motor, fan, and display panel
Processes inputs from keypad or touch controls
Provides safety control and error detection

Function:

The PCB receives user commands, processes them through its internal circuitry, and sends signals to operate the heating system and internal components, ensuring accurate and efficient cooking.

Use Case:

Used in all types of microwave ovens (solo, grill, convection) to ensure reliable performance, precise control, and safe operation.

Versatile Board with Universal Compatibility

Designed to suit a wide range of microwave ovens, this PCB board offers universal compatibility, making it a reliable replacement for multiple brands and models. Its single layer construction, mixed component placement, and panel mount design ensure easy integration while supporting essential functions for safe and efficient microwave operation.

Durable and Long-Lasting Construction

Built on FR4 epoxy glass, the PCB board is engineered for durability, supporting more than 10,000 cycle operations. The design effectively manages temperature fluctuations from -20C to 80C, ensuring reliable performance even in challenging household or commercial kitchen environments.

FAQ's of MICROWAVE OVEN PCB BOARD:

Q: How is this microwave oven PCB board installed and what are the requirements?

A: The PCB board is designed for panel mounting and fits most standard microwave ovens. Installation is straightforward; however, it is recommended to be performed by a professional technician. Ensure the microwave is disconnected from power before installation, and select the correct voltage input (110V or 220V AC) based on your appliance.

Q: What control functions does this PCB board provide for microwave ovens?

A: This board enables key control functions, including timer settings, power level adjustments, and start/stop operations. These features ensure users have precise control over cooking duration and intensity, adapting to various food preparation needs for optimal results.

Q: When should I consider replacing my microwave oven's PCB board?

A: Replacement should be considered if your microwave shows erratic performance, unresponsive controls, or completely fails to operate, as these are often signs of PCB board malfunction. Using this universal board can restore operational reliability without the need for a new appliance.

Q: Where can I source this universal microwave oven PCB board in India?

A: This product is readily available through various service providers, suppliers, traders, and wholesalers across India. It is typically found both in physical electronics markets and reputable online distribution platforms.

Q: What are the main benefits of choosing this PCB board for repairs?

A: Key benefits include universal compatibility with most microwave ovens, ease of installation, and dependable operation over more than 10,000 cycles. Its robust construction means fewer replacements, enhancing appliance lifespan and saving on maintenance costs.

Q: How does the mixed component placement (Through-Hole and SMD) impact usage?

A: The mixed placement balances durability and compactness, accommodating both traditional and modern electronic components. This design ensures stable performance, easier repairs, and straightforward upgrades or replacements.
