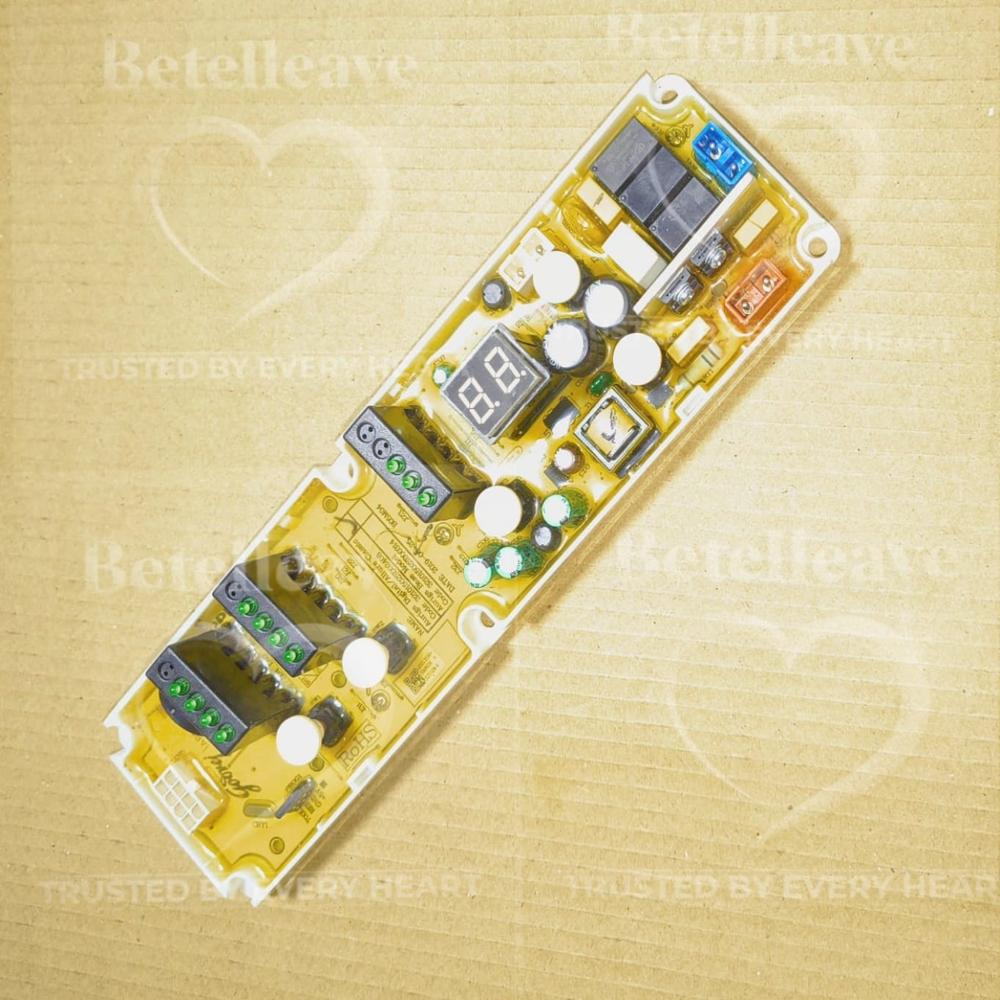

Godrej top loader Washing Machine pcb board

About Godrej top loader Washing Machine pcb board

The Godrej Top Loader Washing Machine PCB Board is the main electronic control unit that manages all washing operations automatically. It coordinates different components to ensure smooth, efficient, and safe performance.

Key Functions

• Wash Program Control:
  Controls complete wash cycles including wash, rinse, and spin as per selected mode.
• Motor Control:
  Regulates motor movement for drum rotation and spin speed, ensuring proper cleaning.
• Water Level Management:
  Works with water level sensors to control water intake and prevent overflow.
• Inlet Valve & Drain Pump Operation:
  Manages water filling through inlet valves and draining via pump at the right time.
• Timer & Sequence Control:
  Ensures each washing stage runs for the correct duration automatically.
• User Interface Integration:
  Connects with control panel buttons and display for easy operation and mode selection.
• Protection System:
  Includes safety features like overvoltage, overload, and short circuit protection.

Main Components

• Microcontroller (main IC)
• Relays / Triacs
• Capacitors & Resistors
• Power supply circuit (SMPS)
• Sensor connectors (water level, lid switch)
• Motor driver circuit
