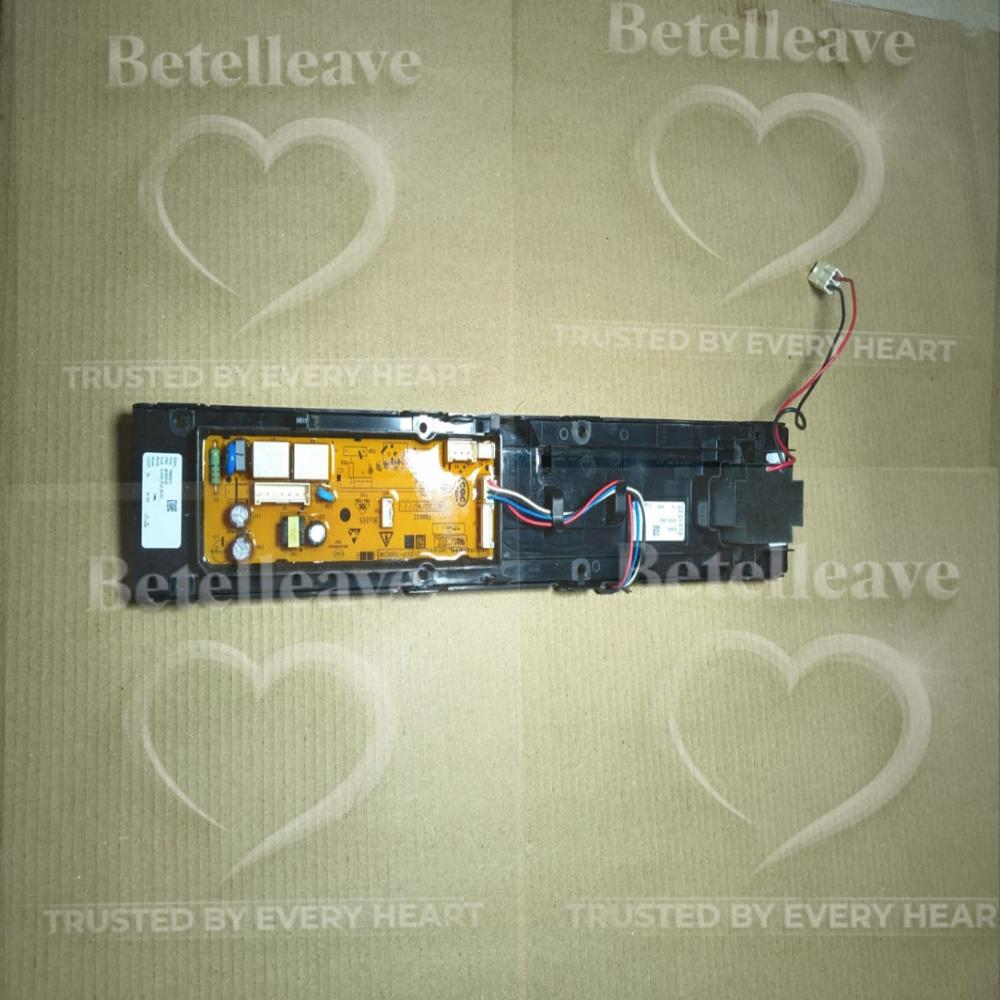

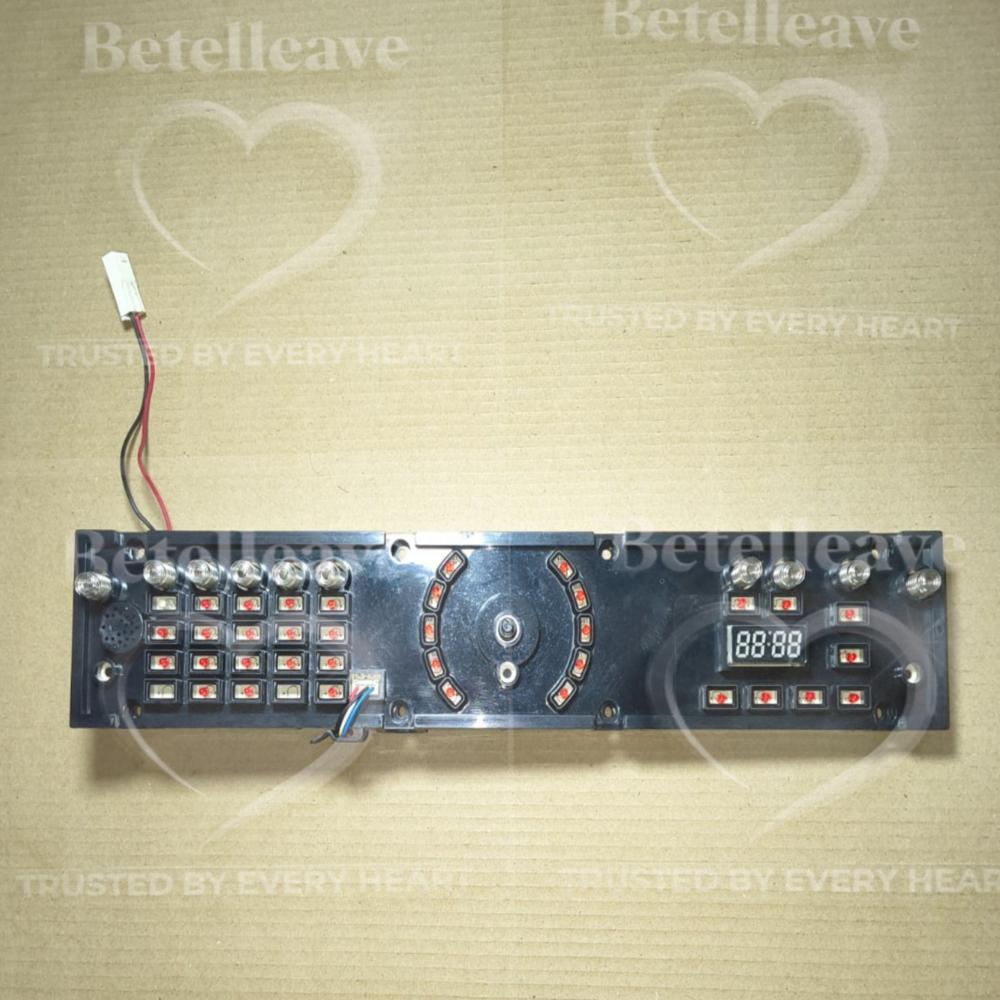

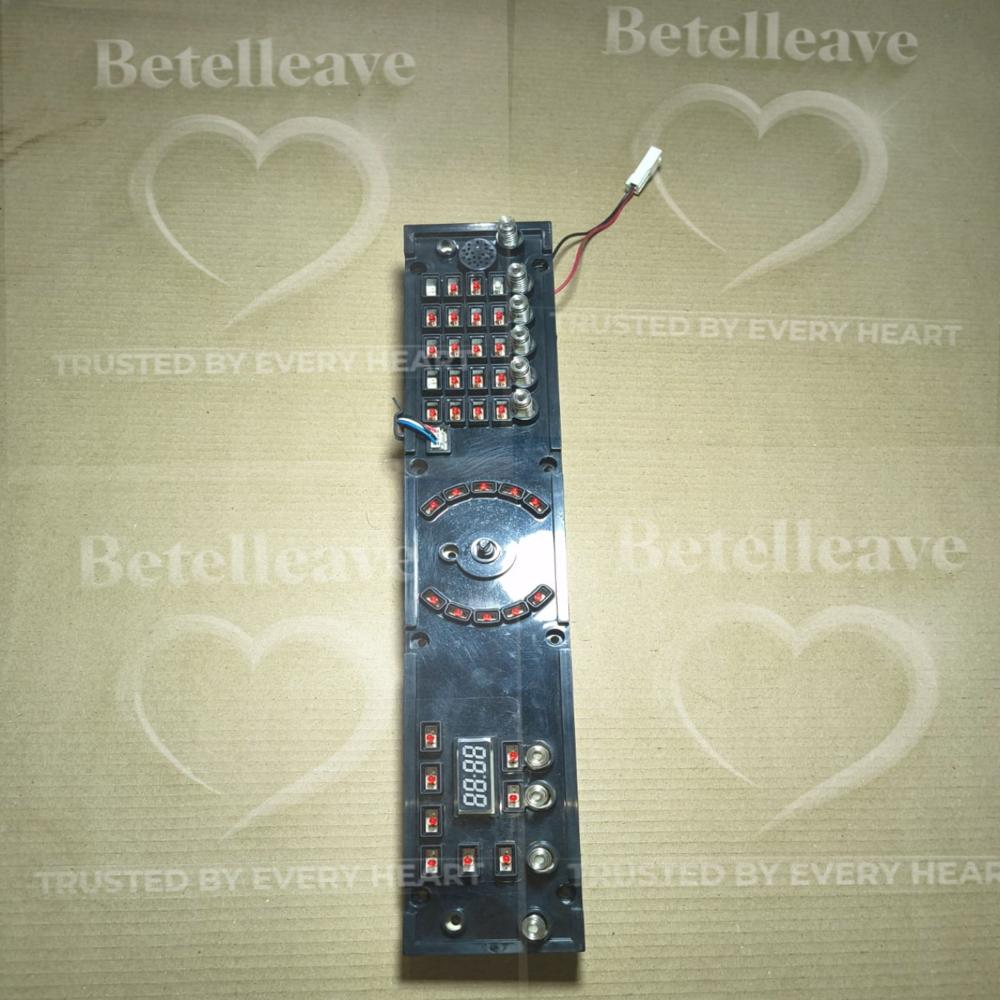

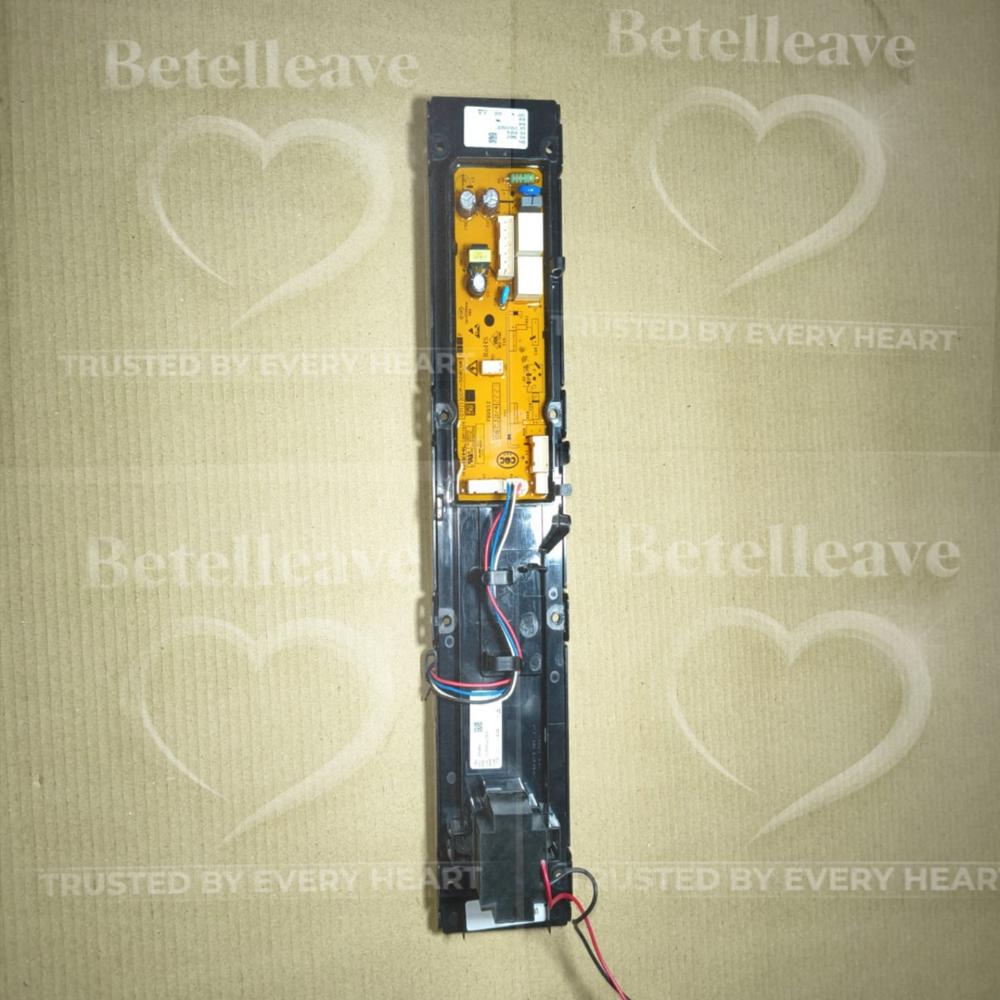

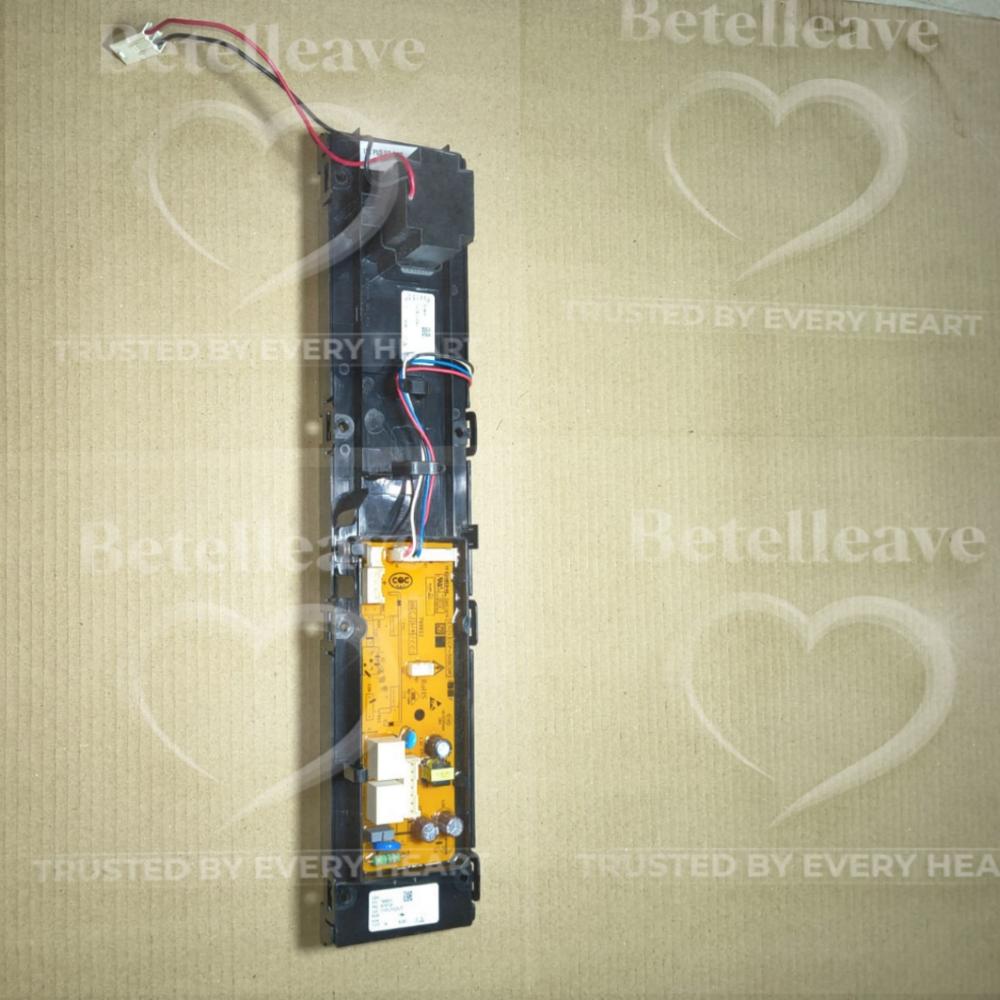

BOSCH TOP loader washing machine pcb board

BOSCH TOP loader washing machine pcb board About

The Bosch Top Loader Washing Machine PCB (Program Control Board) is the main electronic control unit that manages and coordinates all washing machine functions. It receives input signals from sensors and user controls, then processes this information to control the motor, water inlet valves, drain pump, lid lock, and other components.

Key Functions:

• Controls wash, rinse, and spin cycles.
• Regulates water filling and drainage operations.
• Monitors water level, lid switch, and other safety sensors.
• Controls motor speed and direction for efficient washing performance.
• Manages program settings selected by the user.
• Provides protection against electrical faults and operational errors.
• Supports diagnostic and error code functions for troubleshooting.
